Vertical Contour Filled SurfaceΒΆ

../../_images/contours_z_filled1.png

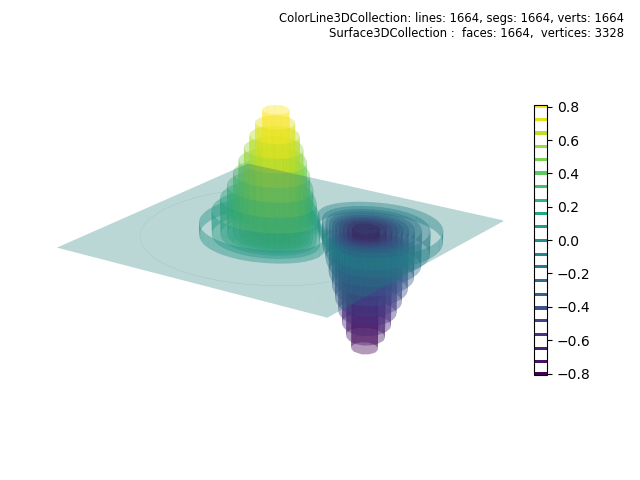

Using the contours from the Vertical Contour Set example, filled line surfaces were created and displayed in the plot (highlighted lines).

import numpy as np
import matplotlib.pyplot as plt
import s3dlib.surface as s3d
from matplotlib import cm


# 1. Define function to examine .....................................

def geo_map(xyz) :
    x,y,z = xyz
    X,Y = 3*x, 3*y
    Z1 = np.exp(-X**2 - Y**2)
    Z2 = np.exp(-(X - 1)**2 - (Y - 1)**2)
    Z = Z1-Z2
    return x,y,Z

# 2. Setup and map surfaces .........................................
rez = 5
pc = cm.get_cmap('viridis')(0.5)

plane = s3d.PlanarSurface(color=pc).set_surface_alpha(.3)

surface = s3d.PlanarSurface(rez)
surface.map_geom_from_op( geo_map )

line = surface.contourLineSet(21)
line.map_cmap_from_op(lambda xyz: xyz[2])
line.set_linewidth(2)

surface = line.get_filled_surface()
surface.set_surface_alpha(.4)

# 3. Construct figure, add surface, plot ............................

fig = plt.figure(figsize=plt.figaspect(0.75))
fig.text(0.975,0.975,str(line)+'\n'+str(surface),
    ha='right', va='top', fontsize='smaller', multialignment='right')
ax = plt.axes(projection='3d')
minmax = ( -0.8,0.8 )
ax.set(xlim=minmax, ylim=minmax, zlim=minmax )
plt.colorbar(line.stcBar_ScalarMappable(21,'w'), ax=ax,  shrink=0.6 )
ax.set_axis_off()
ax.view_init(20,-55)

ax.add_collection3d(plane.shade())
#ax.add_collection3d(line.shade(.7))
ax.add_collection3d(surface)

fig.tight_layout()
plt.show()
