Unstructured coordinates, Smoothed Surface

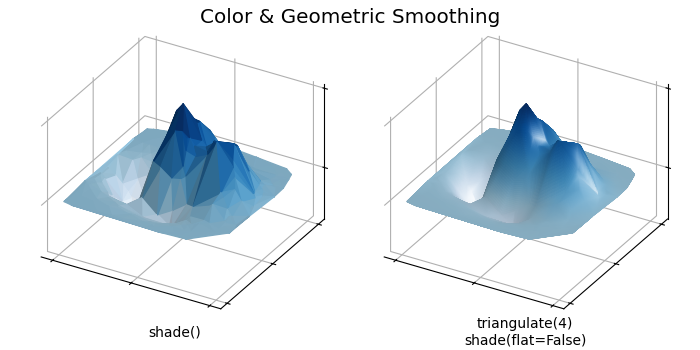

Smoothed surface for the Unstructured coordinates example.

import numpy as np
import matplotlib.pyplot as plt
import s3dlib.surface as s3d

# make data:  <--- copy from matplotlib examples
np.random.seed(1)
x = np.random.uniform(-3, 3, 256)
y = np.random.uniform(-3, 3, 256)
z = (1 - x/2 + x**5 + y**3) * np.exp(-x**2 - y**2)

verts = np.array([x,y,z]).T

# Construct figure, add surface, plot ..........................

fig = plt.figure(figsize=(7,3.5))
fig.text(0.50,.95,'Color & Geometric Smoothing', ha='center', va='center',fontsize='x-large')
fig.text(0.25,.05,'shade()', ha='center', va='center')
fig.text(0.75,.05,'triangulate(4)\nshade(flat=False)', ha='center', va='center')
for i in range(2) :
    ax = fig.add_subplot(121+i, projection='3d')
    ax.set(xticks=[-3,0,3],yticks=[-3,0,3],zticks=[0,1] )
    ax.tick_params(labelcolor='w')
    ax.set_proj_type('ortho')
    ax.xaxis.set_pane_color([1,1,1])
    ax.yaxis.set_pane_color([1,1,1])
    ax.zaxis.set_pane_color([1,1,1])

    surface = s3d.PlanarSurface.pntsurf(verts)
    if i==1 :
        surface.triangulate(4)
        surface.map_cmap_from_op(cmap='Blues')
        surface.shade(flat=False).hilite(flat=False, focus=2)
    else :
        surface.map_cmap_from_op(cmap='Blues')
        surface.shade()
    s3d.auto_scale(ax,surface)
    ax.add_collection3d(surface)

fig.tight_layout(pad=1.0)
plt.show()
